F1 PRO DIY files

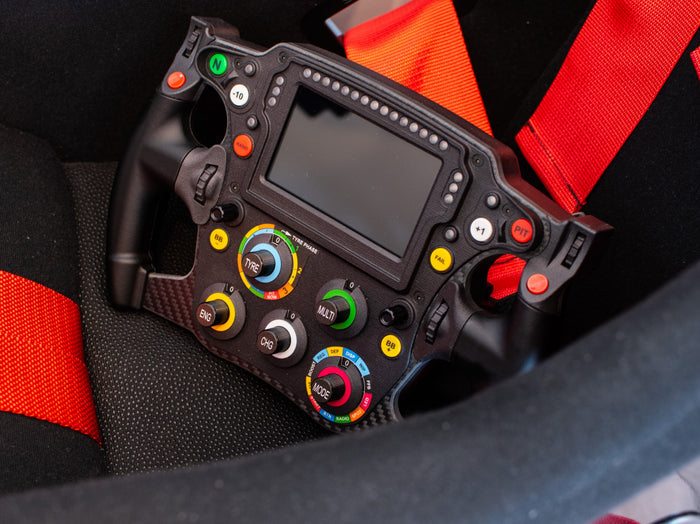

Build the wheel which has everything you need to be in control of an F1 car.
After purchase you will be able to download all the files provided for this wheel.
Video: Test Drive
Wheel features:
| • | Full carbon fiber/metal structure |
| • | 280mm diameter, 1550g |

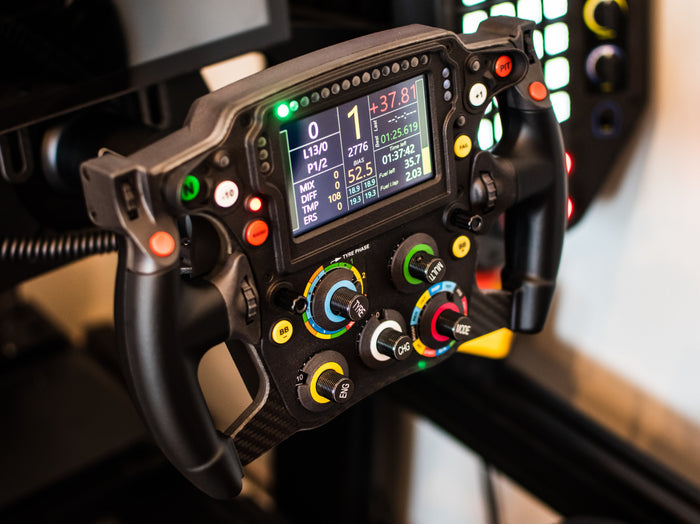

| • | 4.3" 800x480 LCD display (VoCore) |
| • | 25 RGB LEDs (24 programable, 1 dedicated for dual-clutch system) |
| • | Ergonomic, authentic grips |

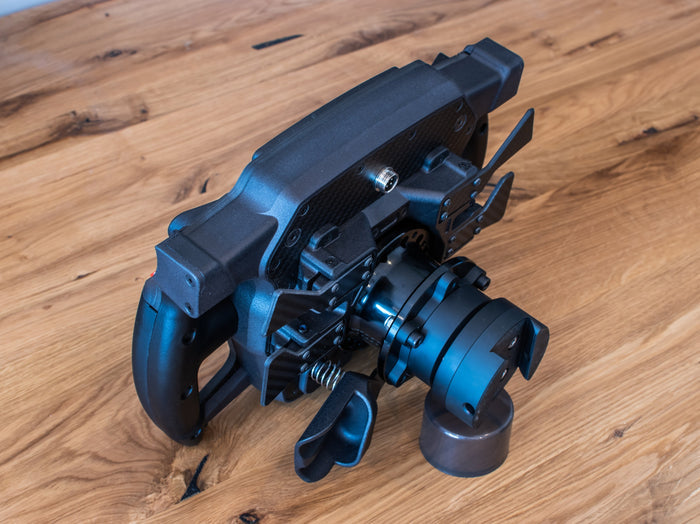

| • | Magnetic paddle shifters and extra quick adjust paddles |

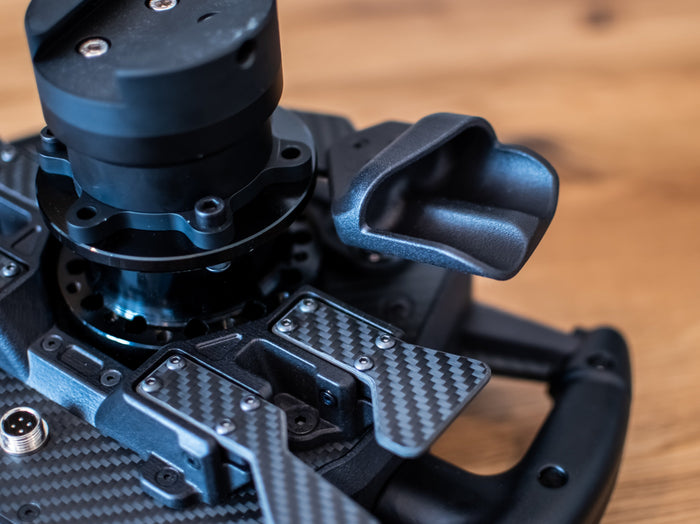

| • | Hall-sensor clutch paddle with dual-clutch function (bite-point adjustable) |
| • | 4x side CTS288 rotary encoders |

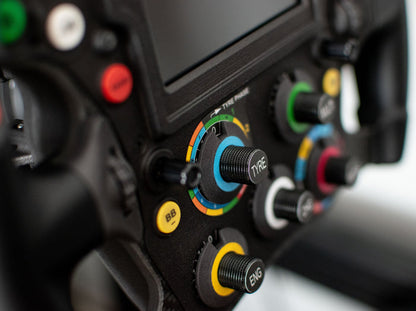

| • | 5x Front rotaries (12 position switches) |
| • | Mulit-function rotary pair |
| • | 2x Funky switches (optional, can be assembled with buttons instead) |
| • | 70mm PCD Quick-Release compatibility |

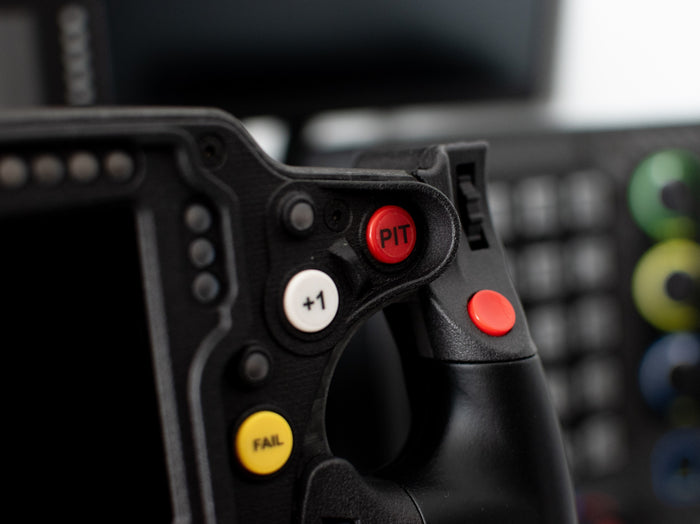

| • | Adjustable button backlight (can be turned off) |
Design content:
| • | Detailed assembly manual |
| • | Full BOM (bill of materials: parts required, eg. screws, connectors, magnets, ...) |

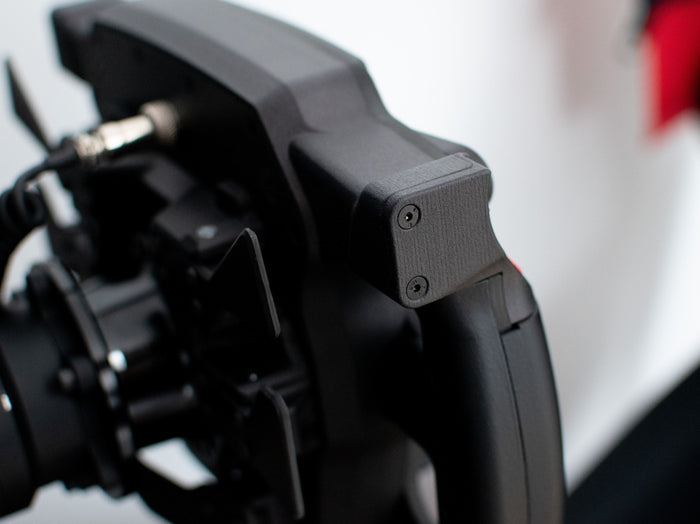

| • | Files for 3D printing (.stl files, min build plate: 270x200mm) |
| • | Files for carbon fiber/aluminum parts manufacturing (.step files) |
| • | Ready to order fabrication files for cutsom PCB |
| • | Firmware for the PCB (.hex binary) |
| • | Decal designs (printable) |
| • | SimHub dash and LED profile |
Compatible bases:
| • | Fanatec (with Podium HUB or SRM emulator) |
| • | Simucube (with SQR) |
| • | Simagic (with Simagic QR) |
| • | MOZA (with Moza QR) |
| • | Thrustmaster (with 70mm adapter) |
| • | Any other bases with 70mm PCD mounting system |
PERSONAL USE LICENSE ONLY
The files are for personal use only, non commercial, not for resale!
You cannot sell the digital model, a derivative or adaptation of the model, nor can you sell prints/makes of the model.
This is not a physical product. Digital downloads will be sent via email automatically after completing payment.
Photos are example only of one build.
